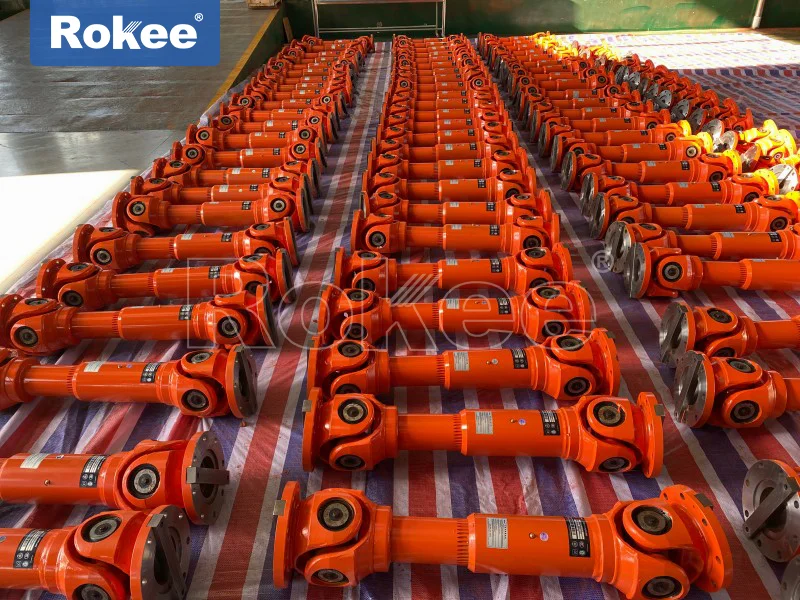

Model Of Cross Axis Universal Shaft Coupling

Common models of cross axis universal couplings classified by series

1. SWC series cross axis universal shaft coupling features: The integral fork head is designed without bolts, with high strength and long service life, suitable for heavy-duty and high-speed working conditions.
   Typical models:
   SWC100, SWC120, SWC150 (light to medium)
   SWC250, SWC285, SWC315 (heavy)
   SWC315WH (non expansion flange type)
   Applications: metallurgical rolling mills, mining machinery, ship propulsion systems, etc.

2. SWP series cross axis universal shaft coupling features: split fork structure, supports large extension and contraction, and has strong wear resistance.
   Typical models:
   SWP160F (with a turning diameter of 160mm and a nominal torque of 16kN · m)
   SWP120, SWP200 (suitable for metallurgical and lifting equipment)
   Application: Heavy machinery shaft systems, such as oil drilling rigs and engineering transport vehicles..

3. WS/WSD series (small) cross axis universal coupling features: lightweight design, axis angle ≤ 45 °, transmitted torque 11.2~1120N · m.
   Model Example:
   WS1-WS8 (Double Cross Shaft Type)
   WSD1-WSD8 (Single Cross Shaft Type)
   Application: Precision machinery, small transmission equipment, such as automated production lines..

4. WSH type (sliding bearing structure) cross axis universal joint features: using sliding bearing technology, suitable for multi angle power transmission.
   Submodel: 7 types including standard expansion welding type, flange type, etc., with a rotation diameter of 100-670mm.
   Application: Industrial transmission system, requiring high stability scenarios..

5. Characteristics of the WSL type (special for straightening machines) cross axis universal joint: designed specifically for roll type sheet metal straightening machines, with an axis angle of ≤ 10 °. Model: WSL1-WSL6, nominal torque 90~6300N · m.

Special models of cross axis universal couplings based on function and structure

1. Expansion type cross axis universal joint coupling
   SWC-BH series: such as SWC200BH, SWC265BH, with expansion spline, suitable for axial displacement compensation. Scalable universal joint: such as WSS type, supports axial movement adjustment.

2. SWC-WF type universal joint coupling without expansion flange: flange connection, compact structure, suitable for space limited scenarios.

Selection reference factors

1. Load requirements: light (WS series) to heavy (SWC315 or above).


2. Speed range: SWC bolt free type is selected for high speed, SWP type is selected for low speed heavy load.


3. Installation space: The telescopic type is suitable for long-distance transmission, while the flange type saves space.


4. Environmental conditions: Stainless steel material can be selected for corrosion-resistant scenarios (such as some models in the WS series).
