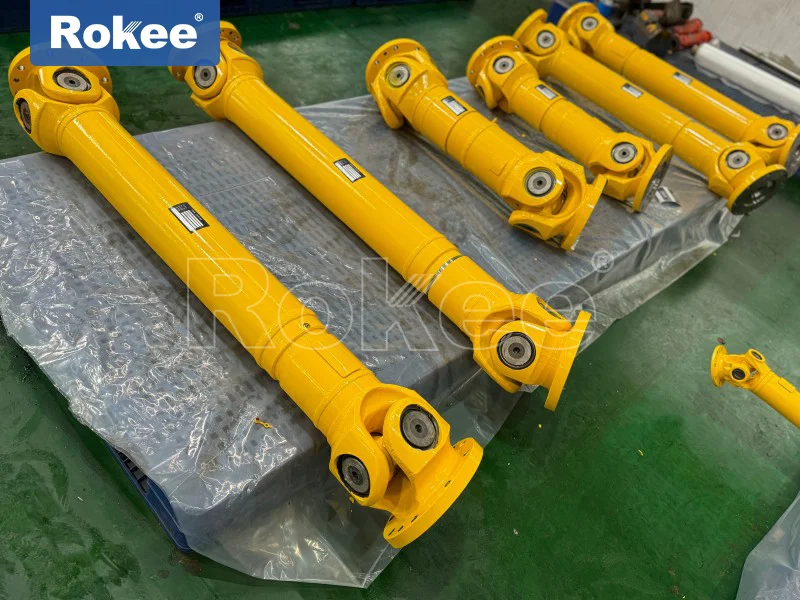

Heavy Duty Universal Joint Couplings

Heavy duty universal joint coupling is a mechanical device used to connect two shafts (active shaft and passive shaft) in different mechanisms and transmit torque. It can achieve continuous rotation and reliably transmit torque and motion when there is a large angle between the two axis lines (usually between 5 ° -45 °). Compared with ordinary couplings, heavy-duty universal joint couplings have larger dimensions, higher load-bearing capacity, and stronger durability, designed specifically for high torque and heavy load conditions.

In terms of core features, heavy-duty universal joint couplings have the following significant advantages:

1. Large angular compensation capability: can adapt to large angular deviations between two axes


2. High torque transmission: designed to transmit large torque in heavy machinery

3. Compact structure: achieving efficient power transmission in a limited space

4. High transmission efficiency: usually up to 98.7% -99.9%


5. Strong durability: Made of high-quality materials and reinforced design, with a long service life

Heavy duty universal joint couplings are widely used in metallurgical rolling mills, mining machinery, engineering transportation equipment, heavy lifting machinery, petroleum drilling and production equipment, ship propulsion systems, and other fields. They are key components for power transmission in heavy industrial equipment.

There are various structural forms of heavy-duty universal joint couplings, each with its unique advantages and applicable scenarios. In practical industrial applications, the cross axis universal joint has become the mainstream choice for heavy-duty universal joint couplings due to its high structural strength and load-bearing capacity, especially the SWC series, which is more widely used in metallurgy, mining and other industries.

The working principle of heavy-duty universal joint couplings is based on their special mechanical structure, which can achieve power transmission in the presence of angular deviation between the two shafts. Understanding this working principle is helpful for the proper use and maintenance of couplings.
