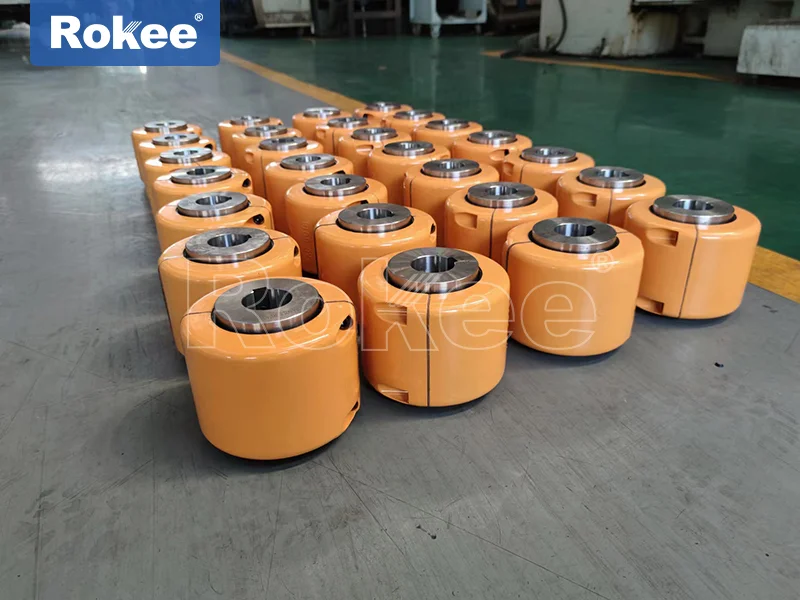

GL Roller Chain Coupling

GL Roller Chain Coupling uses the common chain to connect the two semi-couplings with chain teeth so as to transfer torque, featuring with simple structure, convenient installation and disassembly, low installation precision and certain compensation ability.

Model	Nominal Torque N ·m	Allowable Rotating Speed rpm		Shaft Hole Diameter d₁、d₂ mm	Shaft Hole Length mm		Chain Number	Chain Pitch P mm	Number of Teeth Z	D	S	D_k (Max)	L_k (Max)	Weight kg	Rotational Inertia Kg ·m²	Allowable Compensation Amount
		Without Cover	Installing Cover		Y型	J₁型				D	S	D_k (Max)	L_k (Max)			Radial mm	Axial mm	Angular Orientation
		Without Cover	Installing Cover		L					mm						Radial mm	Axial mm	Angular Orientation
GL1	125	1400	4500	16	42	一	06B	9.525	14	51.06	4.9	70	70	0.40	0.00010	0.19	1.4	1°
				18	42	一
				18	42	一
				20	52	38
GL2	160	1250	4500	19	42	一	06B	9.525	16	57.08	4.9	75	75	0.70	0.00020	0.19	1.4	1°
				20	52	38
				22	52	38
				24	52	38
GL3	250	1000	4000	20	52	38	08B	12.7	14	68.88	6.7	85	80	1.1	0.00038	0.25	1.9	1°
				22	52	38
				24	52	38
				25	62	44
GL4	400	1000	4000	24	52	一	08B	12.7	16	76.91	6.7	95	88	1.8	0.00086	0.25	1.9	1°
				25	62	44
				28	62	44
				30	82	60
				32	82	60
GL5	630	800	3150	28	62	一	10A	15.875	16	94.46	9.2	112	100	3.2	0.0025	0.32	2.3	1°
				30	82	60
				32	82	60
				35	82	60
				38	82	60
				40	112	84
GL6	790	630	2500	32	82	60	10A	15.875	20	116.57	9.2	140	105	5.0	0.0058	0.32	2.3	1°
				35	82	60
				38	82	60
				40	112	84
				42	112	84
				45	112	84
				48	112	84
				50	112	84
GL7	1600	630	2500	40	112	84	12A	19.05	18	127.78	10.9	150	122	7.4	0.012	0.38	2.8	1°
				42	112	84
				45	112	84
				48	112	84
				50	112	84
				55	112	84
				60	142	107
GL8	2100	500	2240	45	112	84	16A	25.40	16	154.33	14.3	180	135	11.1	0.025	0.50	3.8	1°
				48	112	84
				50	112	84
				55	112	84
				60	142	107
				65	142	107
				70	142	107
GL9	3500	500	2000	50	112	84	16A	25.40	20	186.50	14.3	215	145	20.0	0.061	0.50	3.8	1°
				55	112	84
				60	142	107
				65	142	107
				70	142	107
				75	142	107
				80	172	132
GL10	4800	315	1600	60	142	107	20A	31.75	18	213.02	17.8	245	165	26.1	0.079	0.63	4.7	1°
				65	142	107
				70	142	107
				75	142	107
				80	172	132
				85	172	132
				90	172	132
GL11	7500	250	1500	75	142	107	24A	38.1	16	231.49	21.5	270	195	39.2	0.188	0.76	5.7	1°
				80	172	132
				85	172	132
				90	172	132
				95	172	132
				100	212	167
GL12	12000	250	1250	85	172	132	28A	44.45	16	270.08	24.9	310	205	59.4	0.380	0.88	6.6	1°
				90	172	132
				95	172	132
				100	212	167
				110	212	167
				120	212	167
GL13	20000	200	1120	100	212	167	32A	50.8	18	340.80	28.6	380	230	86.5	0.860	1.0	7.6	1°
				110	212	167
				120	212	167
				125	212	167
				130	252	202
				140	252	202
GL14	33000	200	1000	120	212	167	32A	50.8	22	405.22	28.6	450	250	150.8	2.06	1.0	7.6	1°
				125	212	167
				130	252	202
				140	252	202
				150	252	202
				160	302	242
GL15	40000	200	900	140	252	202	40A	63.5	20	466.25	35.6	510	285	234.4	4.37	1.27	9.5	1°
				150	252	202
				160	302	242
				170	302	242
				180	302	242
				190	352	282
