WG鼓形齿式联轴器

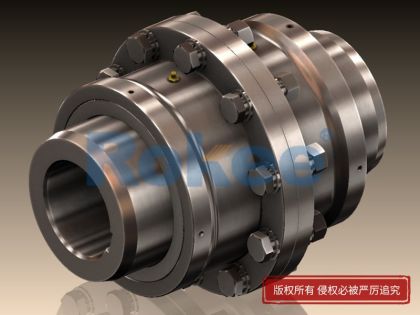

WG鼓型齿联轴器的总体特性与其他鼓型齿类似,但是采用更大模数设计,一般可以传递更大的扭矩。

型号公称
转矩
N ·m
许用
转速
rpm
轴孔直径
d1、d2、dz
轴孔长度LDD1D2D3D4BB1FCC1C2质量
kg
转动惯量
kg ·m²
YJ1、Z1III
WG1800750012,14321221159888601161003030
5.64.860.0080.0063
16,18,19422014
20,22,2452104
25,286244331918
30,32,35,388260332312
40,4211284332912
WG214006700 22,245215014511810877136104302049.787.480.0210.016
 25,2862103
 30,32,35,388260332316
40,42,45,48,50,55,5611284332916
WG32800630022,2452170165140125901601083033716.712.20.0470.033
25,2862233
30,32,35,388260332316
40,42,45,48,50,55,5611284332916
60,63142107333616
WG45000560030,32,35,38822001951601451121801163013325.619.60.0980.073
40,42,45,48,50,55,5611284332917
60,63,65,70,71,75142107333617
80172132334117
WG58000530030,32,35,3882225215180168128200126302333526.10.1750.126
40,42,45,48,50,55,5611284332919
60,63,65,70,71,75142107333619
80,85,90172132334119
WG611200500032,35,38822452302001851452241343035551.6380.2950.213
40,42,45,48,50,55,5611255
60,63,65,70,71,75142107553820
80,85,90,95172132554320
100212167554820
WG716000450032,35,38822722652302101602441483045568.6450.530.35
40,42,45,48,50,55,56112155
60,63,65,70,71,75142107553820
80,85,90,95172132554320
100,110 212167554820
WG822400425055,561122902722452251762721623029579.555.80.710.46
60,63,65,70,71,75142107553834
80,85,90,95172132554320
100,110,120,125212167554820
WG928000400065,70,71,7514210731530526524519028017630553838106.580.5 1.05 0.77
80,85,90,95172132554328
100,110,120,125212167554828
130,140 252202555328
WG104500035507514235534030028022533019630285158.8121.81.871.54
80,85,90,95172132554338
100,110,120,125212167554828
130,140,150252202555328
160302242556328
WG1163000300085,90,9517241238534532525636022440158214167 3.66 2.77
  100,110,120,125212167885132
130,140,150252202885632
160,170,180302242886632
WG12900002800120,125 212167440435375360288414250408851453022426.394.75
 130,140,150252202885632
160,170,180302242886632
190,200 352282887632
WG131250002500140,150 2522024904804254003204702725088562839030910.447.76
160,170,180302242886632
190,200,220352282887632
WG141800002300160,170,180302242545540462440362530316501010683252242317.4613.52
190,200,22035228210107832
240,250,260410330101010
WG152500002100160,170,1803022425804884005605010684367724.91
190,200,220352282107832
240,250,2604103301010
2704703801010
WG1631500019001803022426505604406005012706393943.22
190,200,220352282128032
240,250,2604103301212
280,300 4703801212
WG174100001800200,220 35228269060046065050127048104156.27
240,250,260 4103301212
280,300,320 4703801212
WG18500000170022035228275065051070060127073138188.17
240,250,260 4103301212
280,300,320 4703801212
340,360 5504501212
WG196300001600240,250,260 4103307756905357456012121526108.8
280,300,320 4703801212
340,360,380 5504501212
WG2080000015002604103308257305807856014142081164.4
280,300,320 4703801414
340,360,380 5504501414
4006505401414
WG219000001300280,300,320 4703809258256208106014142460242.7
340,360,380 5504501414
400,420,440 6505401414
WG2210000009503204703809508506658206014142775297
340,360,380 5504501414
400,420,440,450,4606505401414
WG231120000900360,380 55045010309007108806014143148384.8
400,420,440,450,460,480,5006505401414
WG24140000085038055045010609257309007016163766477.8
400,420,440,450,460,480,5006505401616
5208006801616
